650/65R25 BKT EARTHMAX SR 35 180B/193A2 E-3/L-3 TL

Description

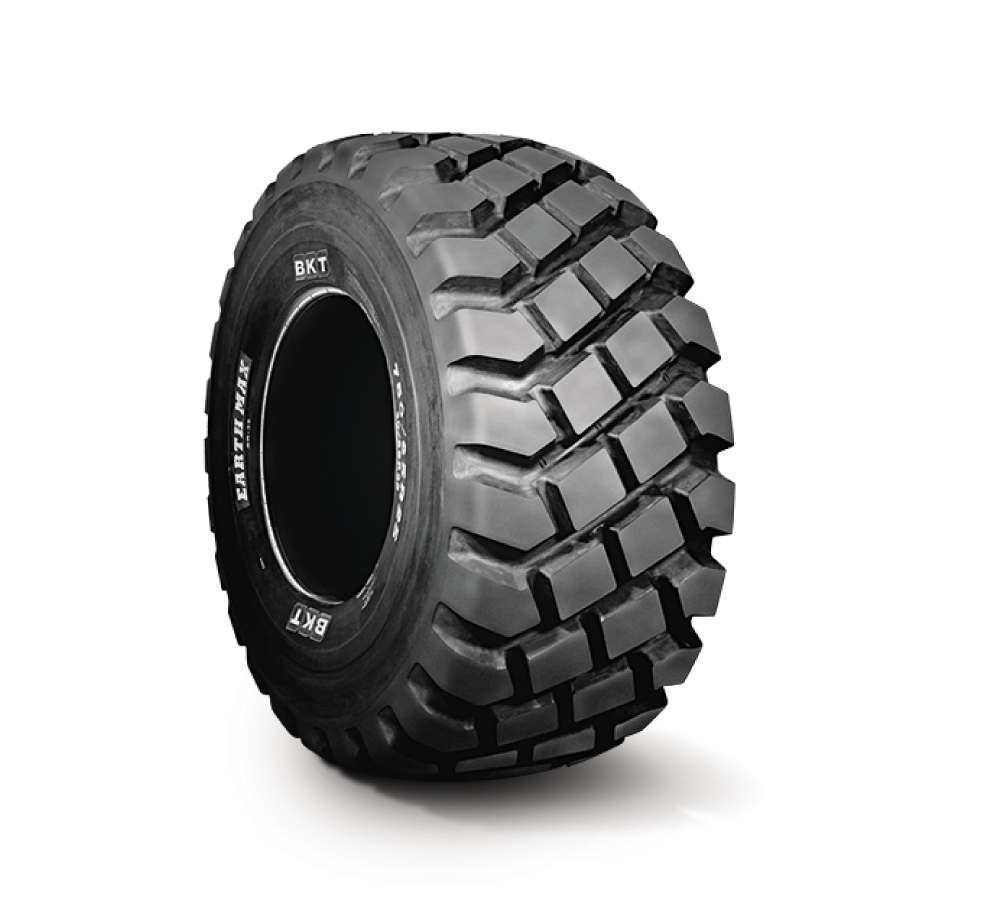

The EARTHMAX SR 35 (E-3/L-3) range of all-steel radial earthmover tyres have been specifically designed for use with ADT's (articulated dump trucks) working in loading, dozing and transport applications. The wide-base tyres provide flotation characteristics helping to provide exceptional stability and traction properties. The steel-belted casing provides increased durability across the tyres lifetime and a unique cut-and-chip resistant compound helps to further extend the tyres life cycle.

Features

  • All-steel radial earthmover tyres for ADTs.
  • Flotation properties for increased stability and traction.
  • Cut-resistant compound.

Specification

Application
EARTHMOVER
Size
650/65R25
Equivalent Size 1
25/65R25
Brand
BKT
Pattern
EARTHMAX SR 35
Load/Speed Index
180B/193A2
TT/TL
TL
Construction
RADIAL
Nominal Section Width
650
Profile
65
Rim
25
TRA
E-3/L-3
Star Rating
**/*
Recommended Rim
19.50/2.5
Section Width
635 mm
Overall Diameter
1498 mm
Static Load Radius
669 mm
Rolling Circumference
4493 mm
Tread Depth
39.00 mm
Max Load (KG)/Speed (KM/H) 1
8000/50 WHEN 4.75 BAR (E-3)
Max Load (KG)/Speed (KM/H) 2
11500/10 WHEN 4.75 BAR (L-3)
Specification 1
CUT RESISTANT COMPOUND
Specification 2
ALL STEEL
Warranty
5 YEARS
