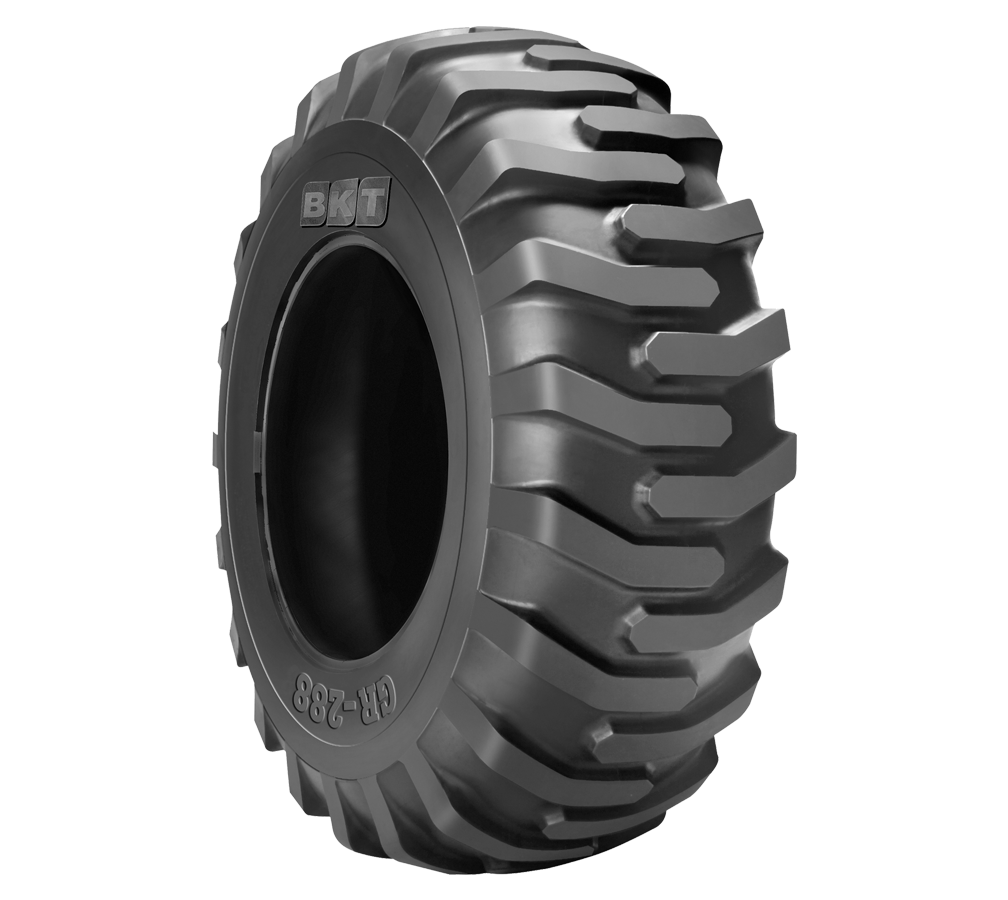

23.5-25 20 PR BKT GR 288 191A2/167A8 G-2/L-2 TL

Description

The GR 288 (G-2/L-2) is a bias-ply tyre designed for graders and loaders. A special cut-and-chip resistant rubber compound helps to prolong the tyre life cycle and an optimal tread design ensures good traction and self-cleaning properties. GR288 is used in construction and road building operations and the open tread design guarantees good performance also in soft and muddy environments.

Features

  • Tyre for grader and loader application.
  • Cut-and-chip resistance.
  • Open lug design for traction and self-cleaning.

Specification

Application
EARTHMOVER
Size
23.5-25
Brand
BKT
Pattern
GR 288
Load/Speed Index
191A2/167A8
Ply Rating
20
TT/TL
TL
Construction
BIAS
Nominal Section Width
23.5
Rim
25
TRA
G-2/L-2
Recommended Rim
19.50/2.5
Section Width
595 mm
Overall Diameter
1610 mm
Static Load Radius
708 mm
Rolling Circumference
4782 mm
Tread Depth
31.00 mm
Max Load (KG)/Speed (KM/H) 1
10900/10 WHEN 3.75 BAR (L-2)
Max Load (KG)/Speed (KM/H) 2
5450/40 WHEN 2.50 BAR (G-2)
ECE 106
Yes
Warranty
5 YEARS
